UPFIT APPLICATIONS

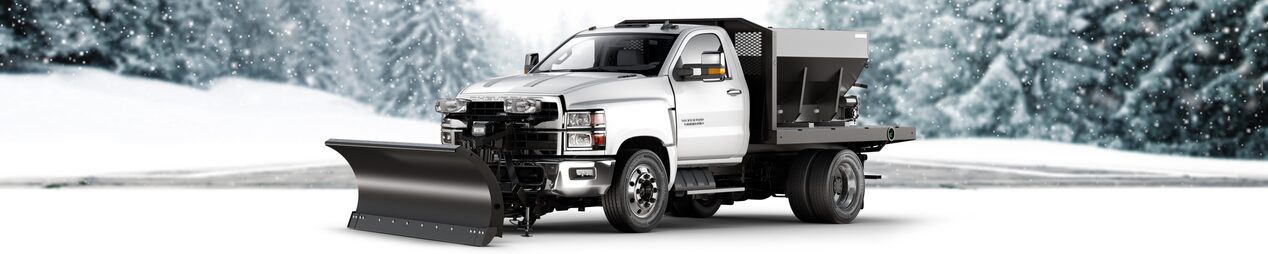

SNOW PLOW / SPREADER

Chevrolet and GMC trucks equipped with the available Snow Plow Prep Package are ready to tackle the worst weather. Our prep packages are designed to simplify the upfit process as well as help make the heavy loads imposed by snow plows and salt/sand spreaders manageable. Plus, features such as a high-output alternator and provisions for roof emergency lights help make clearing the roads safer and easier.

COMPATIBLE MODELS

- Chevrolet Silverado 1500/GMC Sierra 1500



- Chevrolet Silverado 2500 HD/GMC Sierra 2500 HD



 - Chevrolet Silverado 3500 HD/GMC Sierra 3500 HD



- Chevrolet Silverado 3500 HD Chassis Cab/GMC Sierra 3500 HD Chassis Cab

SNOW PLOW/SPREADER UPFITS

When the weather’s bad, GM Envolve vehicles are there to help get the job done. Many of our trucks offer a high-output alternator, wiring provision for emergency beacons and a backup alarm as well as Gross Vehicle Weight Ratings of up to 6,350 kg (14,000 lb.) to help plow through the toughest snow.

APPLICATION CHARTS

CHEVROLET  SILVERADO 1500/GMC SIERRA 1500

REGULAR CAB

4WD SRW

WB/Cab to Axle

3,545 mm (140 in.) /1,403 mm (55.2 in.)

Body Length

8 ft.

Front Maximum GAWR

1,724 kg (3,800 lb.)

Maximum GVWR

3,130 kg (6,900 lb.)

Maximum Payload

1,080 kg. (2,380 lb.)

DOUBLE CAB

4WD SRW

WB/Cab to Axle

3,746 mm (147 in.) /1,071 mm (42.1 in.)

Body Length

8 ft.

Front Maximum GAWR

1,724 kg (3,800 lb.)

Maximum GVWR

3,311 kg (7,300 lb.)

Maximum Payload

862 kg (1,900 lb.)

CREW CAB

4WD SRW

WB/Cab to Axle

3,745 mm (147. in.)/829 mm (32.6 in.)

Body Length

8 ft.

Front Maximum GAWR

1,724 kg (3,800 lb.)

Maximum GVWR

3,311 kg (7,300 lb.)

Maximum Payload

948 kg (2,090 lb.)

4WD SRW

WB/Cab to Axle

3,897 mm (157 in.)/1,071 mm (42.1 in.)

Body Length

8 ft.

Front Maximum GAWR

1,724 kg (3,800 lb.)

Maximum GVWR

3,175 kg (7,000 lb.)

Maximum Payload

875 kg (1,930 lb.)

CHEVROLET SILVERADO 2500 HD/GMC SIERRA 2500 HD

REGULAR CAB

4WD SRW

WB/Cab to Axle

3,596 mm (142 in.) / 1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,001 kg (11,025 lb.)

Maximum Payload

1,829 kg (4,033 lb.)

DOUBLE CAB

4WD SRW

WB/Cab to Axle

3,795 mm 149 in.) /1,071 mm (42.17 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,080 kg (11,200 lb.)

Maximum Payload

1,703 kg (3,755 lb.)

4WD SRW

WB/Cab to Axle

4,127 mm (162 in.)/1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,194 kg (11,450 lb.)

Maximum Payload

1,781 kg (3,926 lb.)

CREW CAB

4WD SRW

WB/Cab to Axle

4,037 mm (159 in.)/1,071 (42.17 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,148 kg (11,350 lb.)

Maximum Payload

1,714 kg (3,779 lb.)

4WD SRW

WB/Cab to Axle

4,369 mm (172 in.)/1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,239 kg (11,550 lb.)

Maximum Payload

1,786 kg (3,937 lb.)

CHEVROLET SILVERADO 3500 HD/GMC SIERRA 3500 HD

REGULAR CAB

4WD SRW/DRW

WB/Cab to Axle

3,596 mm (142 in) /1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

3,151 kg (6,947 lb. )

DOUBLE CAB

4WD SRW/DRW

WB/Cab to Axle

4,127 mm (162 in.) /1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

2,954 kg (6,513 lb.)

CREW CAB

4WD SRW

WB/Cab to Axle

4,037 mm (159 in.) /1,069 mm (42.1 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

5,489 kg (12,100 lb.)

Maximum Payload

1,978 kg (4,361 lb.)

4WD SRW/DRW

WB/Cab to Axle

4,369 mm (172 in.)/1,403 mm (55.24 in.)

Body Length

8 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

2,916 kg (6,428 lb.)

CHEVROLET SILVERADO 3500 HD CHASSIS CAB/GMC 3500 HD CHASSIS CAB

REGULAR CAB

4WD DRW

WB/Cab to Axle

3,716 mm (146. in.)/1,524 mm (60 in.)

Body Length

8 ft., 9 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

3,155 kg (6,955 lb.)

4WD DRW

WB/Cab to Axle

4,339 kg (171 in.) /2,146 mm (84.5 in.)

Body Length

10 ft., 11 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

3,121 kg (6,881 lb.)

CREW CAB

4WD DRW

WB/Cab to Axle

4,490 mm (177 in.) /1,524 mm (60 in.)

Body Length

8 ft., 9 ft.

Front Maximum GAWR

2,722 kg (6,000 lb.)

Maximum GVWR

6,350 kg (14,000 lb.)

Maximum Payload

2,918 kg (6,432 lb.)

CHEVROLET  SILVERADO 1500/GMC SIERRA 1500

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR*

7,000 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,993 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,920 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,824 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,779 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,667 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,580 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,601 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,249 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

8,135 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

16,500 lbs.

Maximum Payload*

7,991 lbs.

CHEVROLET SILVERADO 5500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR*

4,704 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,933 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR*

4,735 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,860 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

4,771 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,764 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

4,791 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,719 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR*

4,791 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,617 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR*

4,756 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,520 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR*

4,814 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,541 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

11,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR*

7,500 lbs.

Maximum GVWR*

19,500 lbs.

Maximum Payload*

10,938 lbs.
